Nocpix SLIM H35

By Chris Mudgett

A versatile hunt-ready thermal workhorse that’s also a great value

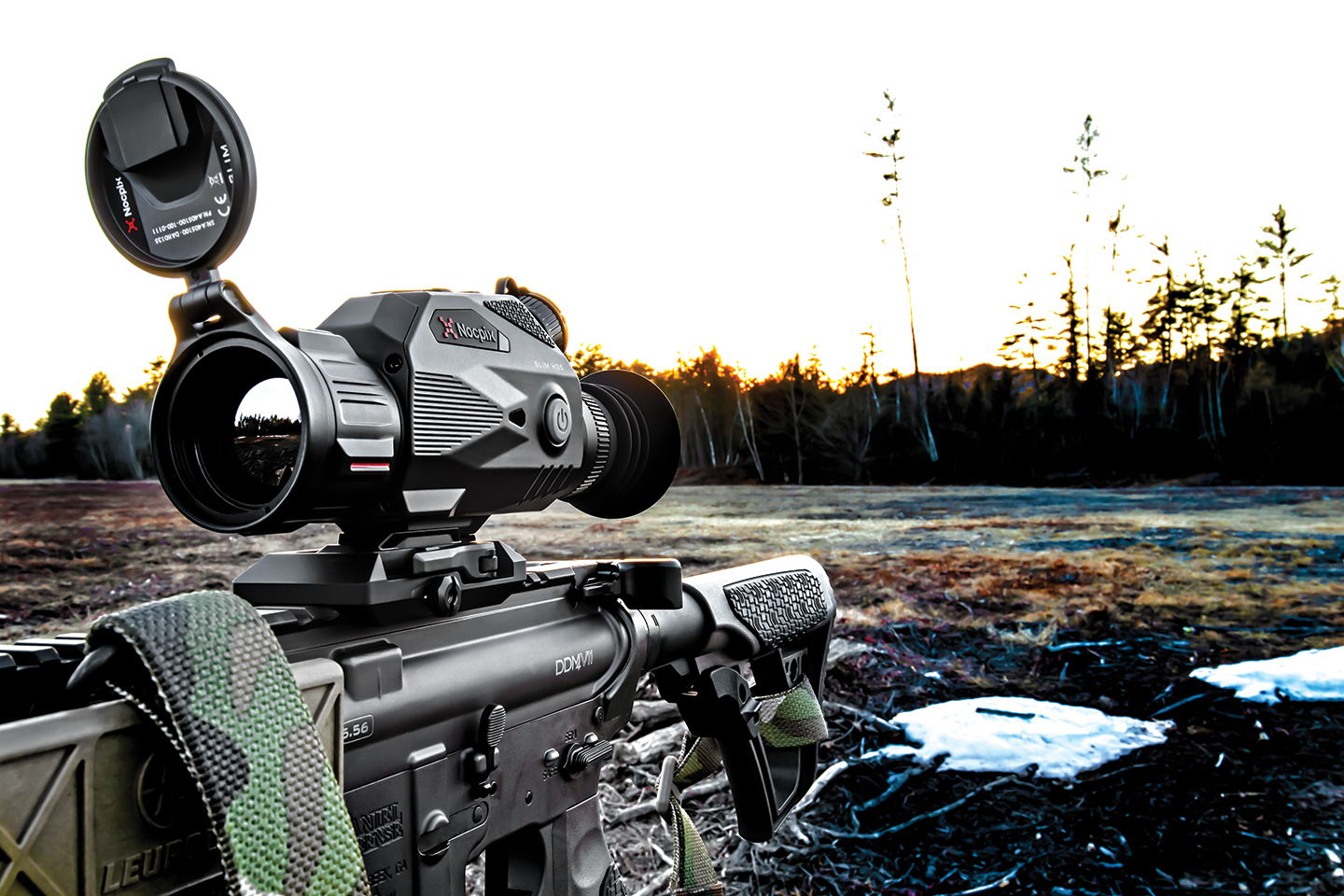

In the world of thermal optics, where weight, size, and clarity can make or break a shot, the Nocpix SLIM H35 stands out as a hunter’s best-kept secret for after-dark activities. Purpose-built with a true dual-role design, this compact thermal optic transitions effortlessly from handheld scanner to weapon-mounted thermal scope, giving users an unmatched advantage across a variety of mission sets — from nighttime hog control to predator hunting and beyond.

Even in less-than-ideal conditions, where thermal contrast is typically low, the H35 delivered exceptionally detailed imagery through its high-contrast 1024×768 AMOLED display. Seven color palettes and multiple reticle styles allow a high level of user customization based on conditions and preference, and a built-in rangefinder allows for quick estimation of target distance.

At the core of the SLIM H35’s appeal is its modularity. Equipped with a proprietary QD mount system, it’s designed to maintain and return to zero, even after repeated mounting and dismounting. This means you can use the device as a handheld thermal monocular for long glassing sessions, then quickly mount it to your rifle once target acquisition is made — without worrying about shifting your point-of-impact. For hunters operating in darkness, where speed and adaptability matter, this system is a game-changer.

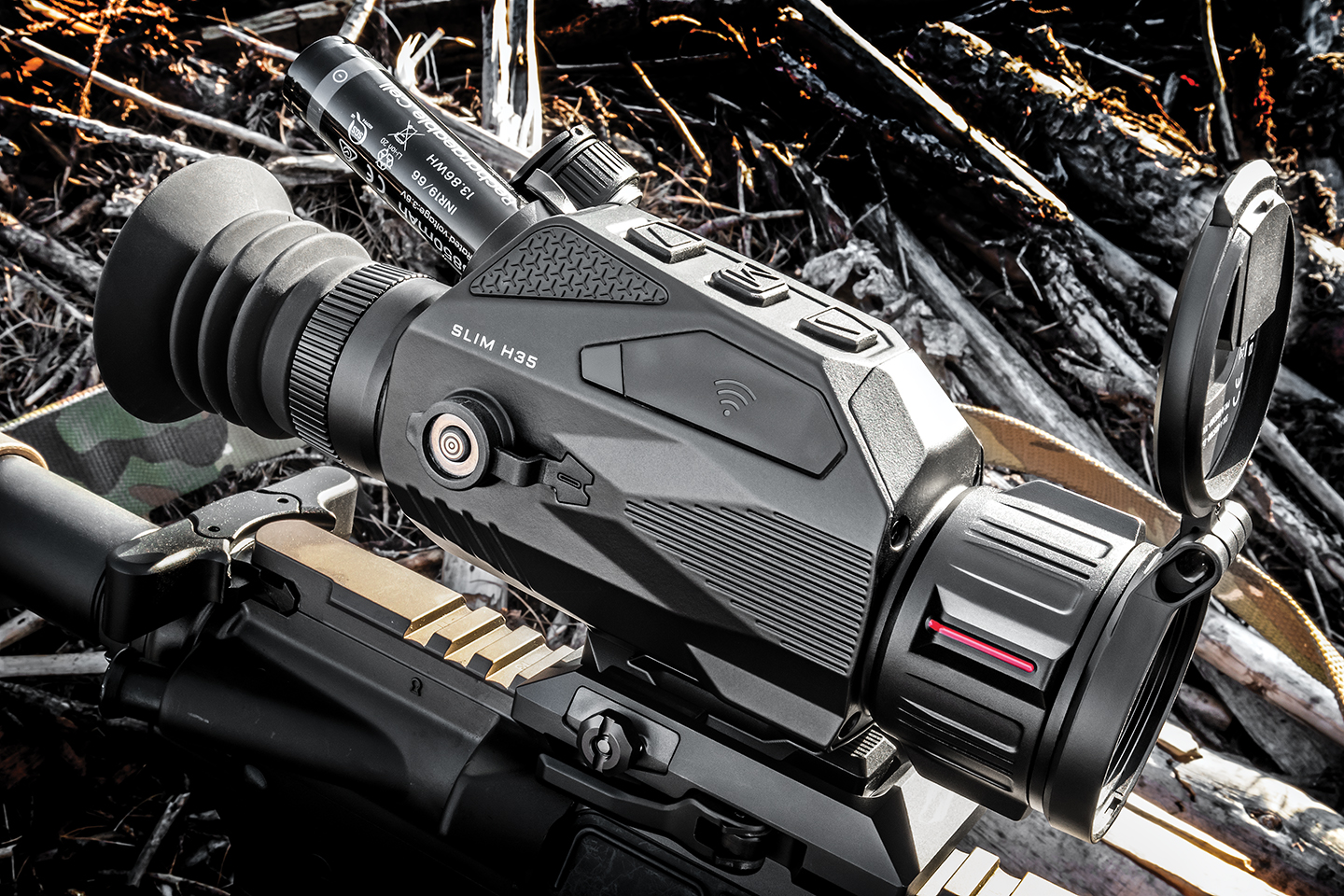

The large top-mounted function-control buttons are right and left-handed friendly and are sufficiently large and tactile to be easily activated with gloved hands. A single, common 18650 battery powers the SLIM H35. The battery can be charged via a USB-C charging station or through the magnetic USB data transfer interface from which video and still images can also be downloaded.

The H35 features a high-sensitivity 640×512 resolution thermal core with a 12μm pixel pitch — specs typically reserved for much larger and more expensive devices. The H35 delivers incredibly crisp imagery, even in adverse environmental conditions where thermal contrast is typically low. Whether you’re glassing in fog, dense brush, or high-humidity environments, this sensor picks up what others might miss.

The thermal image is displayed through a 1024×768 AMOLED display — fast, vibrant, and highly detailed. Operating at a smooth 60Hz refresh rate, the H35 ensures no perceivable lag when tracking fast-moving game. The 35mm objective lens provides a balanced field of view and detection range — wide enough for scanning but still capable of positive identification out to a claimed 1,750 yards. With optical magnification at 2X and digital zoom up to 4X, you get both situational awareness and the ability to dial in on distant targets.

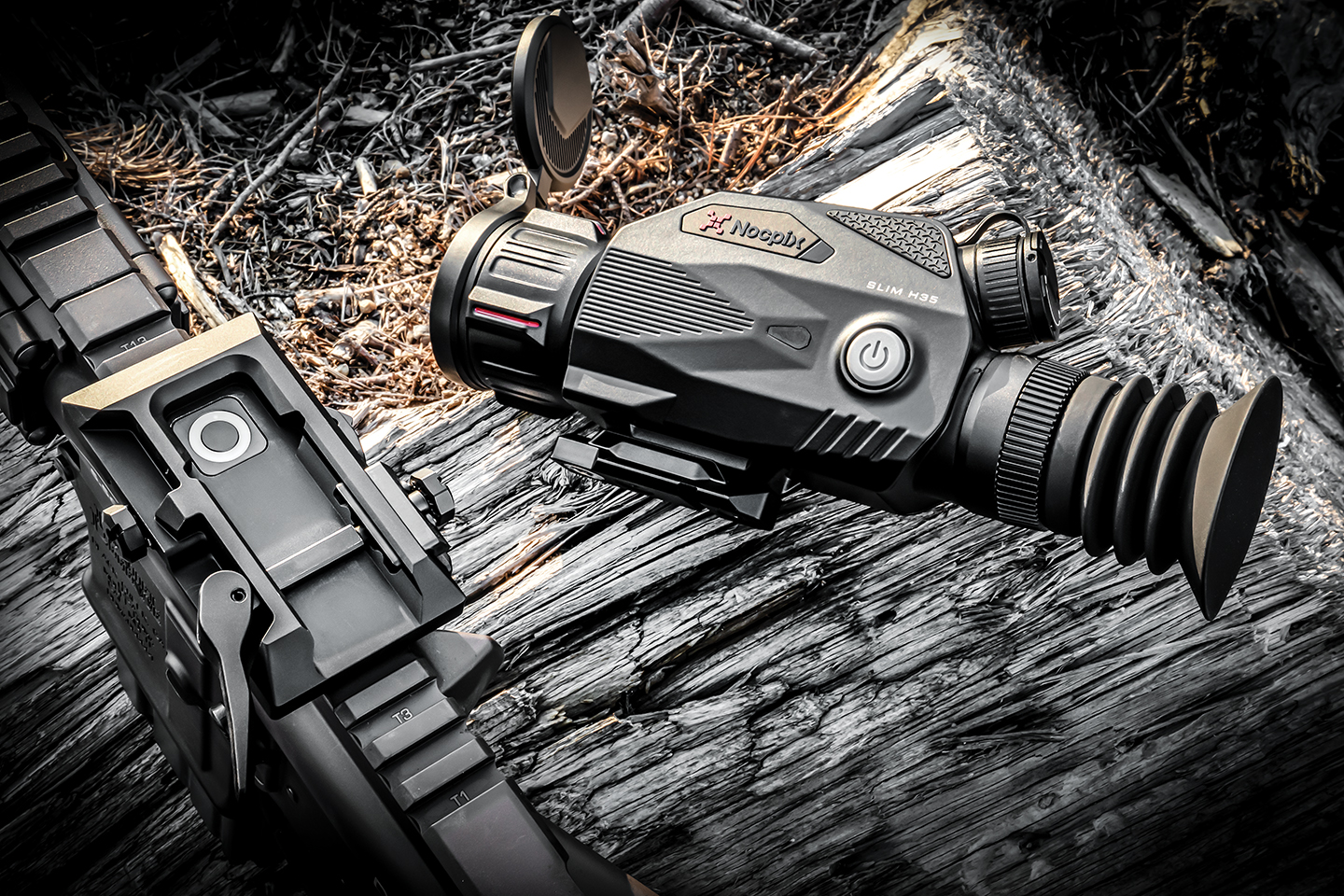

Utilizing a return-to-zero quick-release mount, the SLIM H35 can be detached from the weapon for field scanning and then quickly reattached to make the shot — all without losing your point-of-impact.

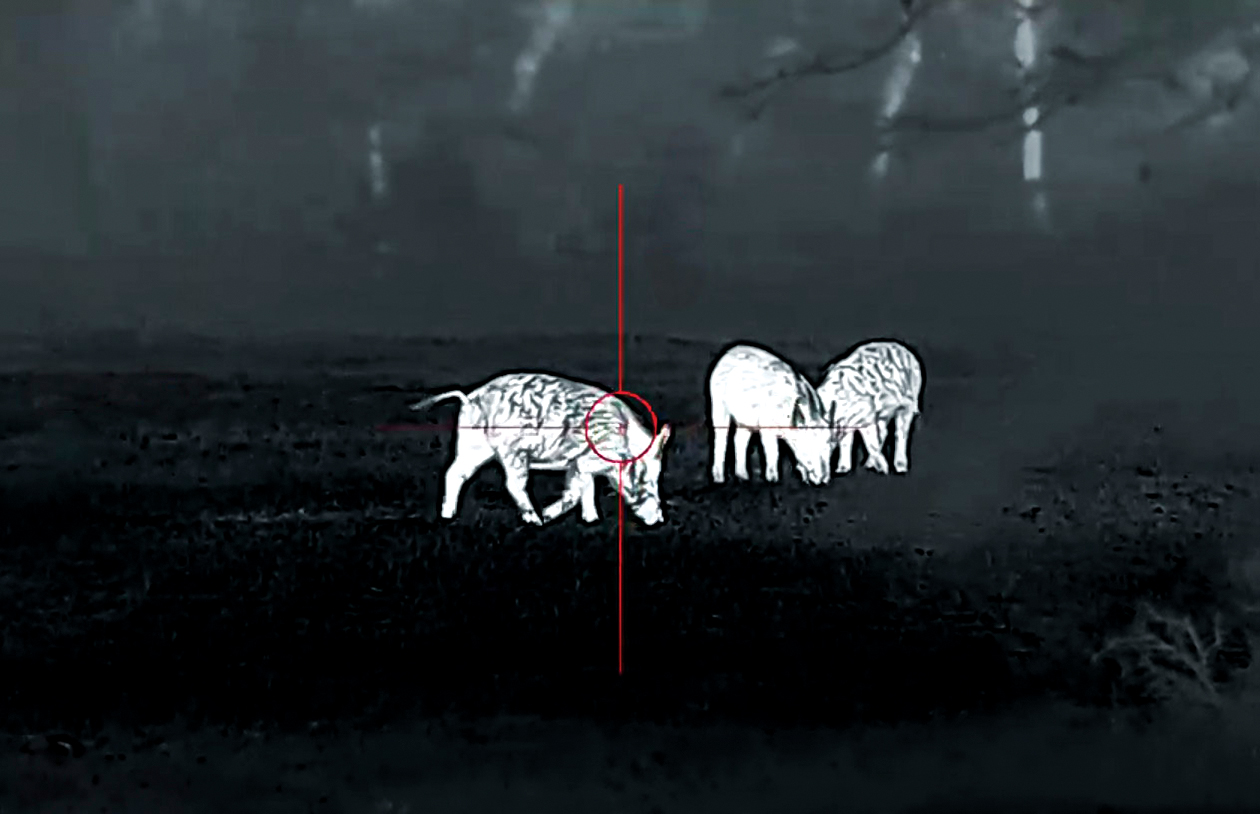

Seven color palettes (White Hot, Black Hot, Red Hot, Rainbow, Crimson, Violet, and Viridian) give users the flexibility to tailor the display to specific environments or personal preferences. Picture-in-picture mode offers a zoomed-in window without sacrificing situational awareness — a key feature when engaging smaller or partially obscured targets at distance.

Internally, the SLIM H35 is powered by a rechargeable 18650-style battery (included). The battery can be recharged via a USB-C charging station, or by using the magnetic charging/data transfer interface, which is capable of recharging the device without battery removal. The battery provides an operational runtime of up to 4.5 hours, meaning it will last for most night hunts without the need to swap batteries out or carry a bulky external battery pack. Additionally, the optic supports recoil-activated video output, WiFi streaming, as well as traditional video and photo capture for users looking to record their hunts or long-range engagements for the gram.

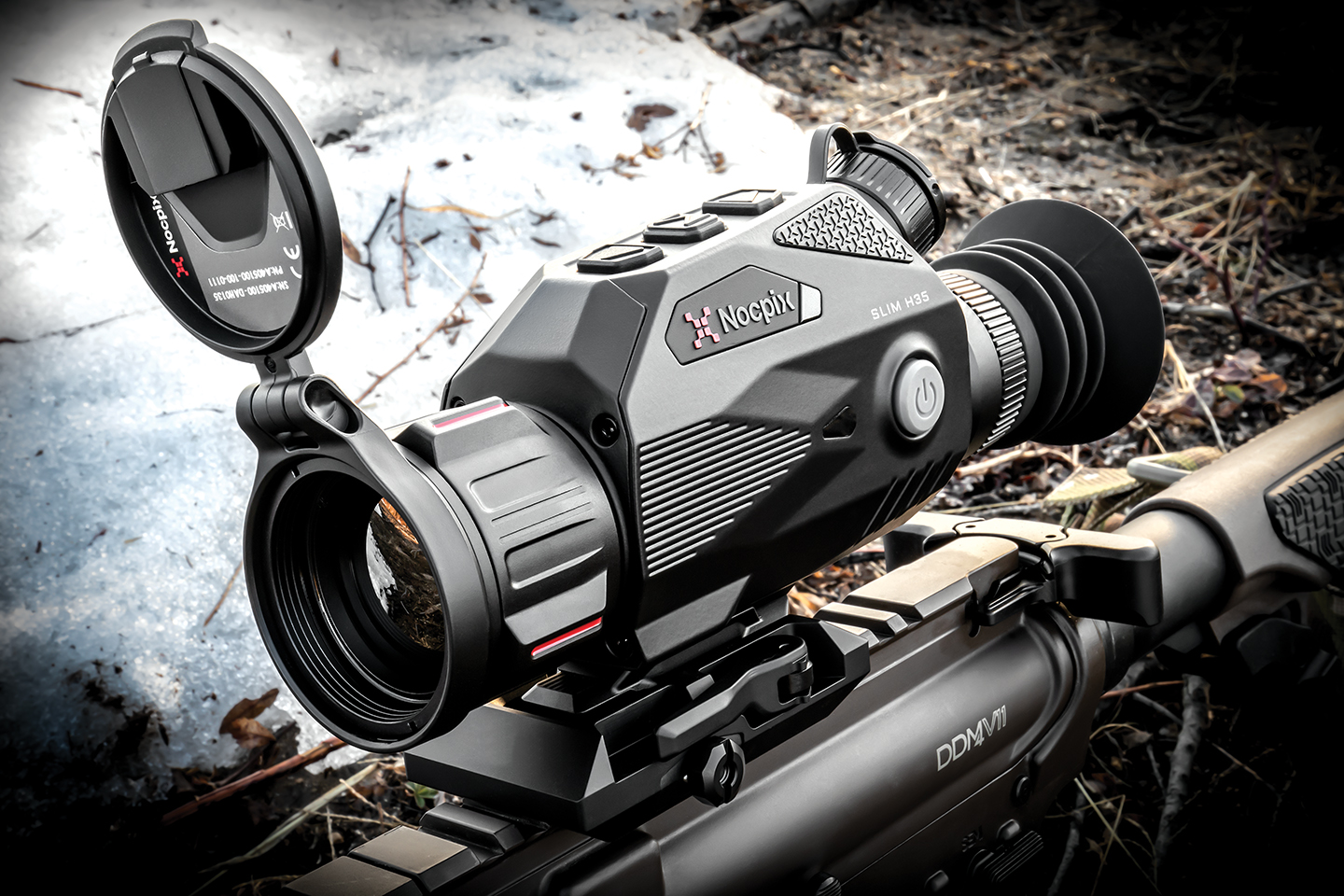

The magnesium alloy housing is built to take abuse yet remains relatively light at 18.70 ounces. The SLIM H35 is IP67-rated — making it dustproof and waterproof for up to 30 minutes in 1 meter of water — and is able to operate within a temperature range of -4 to 122 degrees Fahrenheit. Up front, a manual fast-focus ring shrouds a 35mm lens with a wide field of view.

Controls are intuitive and glove-friendly, placed on the top of the unit for easy access, whether handheld or mounted to a rifle. A built-in stadiametric rangefinder allows for quick estimation of target distance using standard height assumptions (e.g., a 1.8-meter tall human or deer-sized target). Zeroing is made simple through a user-friendly digital interface with multiple reticle styles and color options, allowing you to customize the display to your rifle setup.

Weighing in at just 18.7 ounces (without mount) and measuring 8.50 inches in length, the SLIM H35 lives up to its name — streamlined for a minimal footprint but packing heavyweight performance. The magnesium alloy housing is IP67-rated, meaning it’s fully dustproof and waterproof for up to 30 minutes in 1 meter of water. It’s built to take abuse and keep scanning, whether mounted on a bolt gun, semi-auto rifle, or carried in a chest rig.

Recoil-activated video will automatically record video footage before and after a shot, ensuring the best part of your hunts are recorded. Considering the SLIM H35’s capabilities, features, versatility, and resolution, its $3,300 MSRP represents a real value in today’s thermal weapon sight market.

Thermal performance in a package this small is no longer a future concept — Nocpix delivers it today with the SLIM H35. Whether scanning a field for distant heat signatures or running a suppressed rifle through thick timber, this optic gives you the eyes to dominate the dark. See the SLIM H35 (MSRP: $3,300) at your nearest dealer, or for more information, contact Nocpix USA; Tel.: (800) 769-7125; E-mail: [email protected]; Web: www.nocpixusa.com
